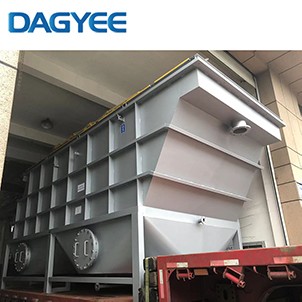

Hot Tank River Water Lamella Plate Separator Clarifier Equipment

  • Product Item : DLC-010
  • Category: Lamella Separator
  • Certification:CE Certificate
  • Capacity:1-200 m3/h
  • Function:High TSS removal
  • Wastewater Treatment Plants
  • INQUIRY   EMAIL

Lamella Separator Description


Lamella clarifier inclined plate settler (IPS)  a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.


Available options

  • Continuous operation.
  • Due to its small volume no need to allocate large storage when emptying.
  • No drive nor mechanical parts.
  • Filling and emptying time is short.
  • Small floor area footprint.
  • Modular design for future expansions.


Lamella Gravity Settler


Lamella Separator Model


DLC-I  Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC
Model
Capacities
(m3/h)
Piping Connections() Physical Dimensions(m)
Inlet(a) Effluent(b) Sludge(c) Backwash(d) L W H
DLC- 5 80 80 50 50 2.55 1.6 2.9
DLC- 10 100 100 50 50 3.35 1.82 3
DLC- 15 100 100 50 50 3.35 2.02 3
DLC- 20 100 100 50 50 3.35 2.02 3
DLC- 30 150 150 50 50 4.2 2.22 3
DLC- 40 150 150 50 50 4 2.8 3
DLC- 50 200 200 50 50 4.65 2.82 3
DLC- 60 200 200 50 50 4.7 3 3
DLC- 70 250 200 50 50 6.4 2.6 3
DLC- 80 250 200 50 50 6.8 2.82 3
DLC- 100 250 250 50 50 7.05 3.02 3


Lamella Separator Advantages


Unit is Completely Assembled

Low Installation
Conservative Design 0.2 GPM/Ft2
Completely Automatic, Gravity in Gravity Out
Reduced Floor Space
Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)

Inclined Plate Separators


Lamella Separator Applications


Fly Ash Waste
Flue Gas Desulfurization (FGD) Waste
Clarification
Solids Recovery
Cooling Tower Blowdown
Iron Removal
Municipal Water Treatment
Semiconductor Process Waste
Whitewater (Pulp & Paper)
Groundwater Remediation
Potable Water Clarification
Landfill Leachate
Boiler Waste Treatment

Lamella plate clarifier
