  • Pac Pam Feeding Device Automatic Chemical Flocculant Dosing Water Treatment
  • Pac Pam Feeding Device Automatic Chemical Flocculant Dosing Water Treatment
Pac Pam Feeding Device Automatic Chemical Flocculant Dosing Water Treatment Pac Pam Feeding Device Automatic Chemical Flocculant Dosing Water Treatment

Pac Pam Feeding Device Automatic Chemical Flocculant Dosing Water Treatment

PAM polymer preparation unit Description

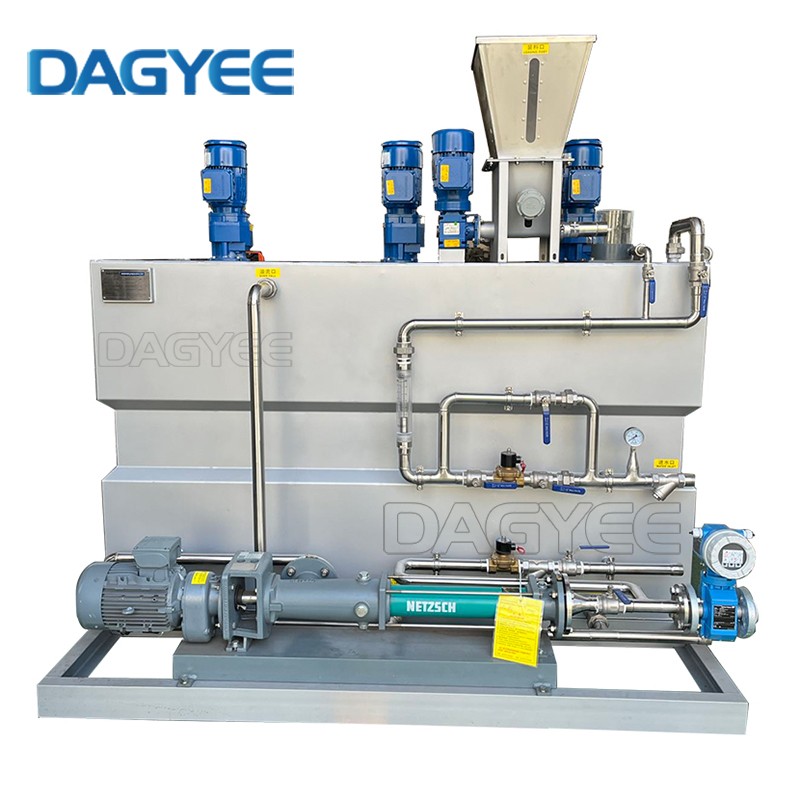

Automatic dosing device is a complete set of equipment with dosing, stirring, liquid transportation and automatic control, which is widely used in raw water of power plant, boiler feed water, oil field surface gathering and transportation dehydration treatment system, various dosing systems of petrochemical industry and waste water treatment system.


Polymer dosing device
Polymer dosing device is composed of hopper, push screw, electric heater and etc. The effective volume of the hopper can meet the dosage for a long time which is equipped with sight glasses for observing material level monitored by the dry powder level meter. The push screw driven by the high-precision reducer can satisfy the dosage. The electric heater can be installed in the discharge pipe of push screw, and it can prevent the powder from caking.

Polymer dissolving device
Polymer dissolving device is composed of pre-soaking device, tank, and 3 sets of mixers. The pre-soaking device is to infiltrate and mix the polymer powder in advance. The 3 tanks are precast mixing tank, homogeneous slaking tank and solution storage tank, in which there is a mixer correspond to guarantee the homogeneity.

Water supply device
Water supply device is composed of pipeline, manual ball valve, filter, pressure gauge, solenoid valve, stop valve, and the rotor flow meter, etc.
Polymer and dilution solution dry polymers


PAM Polymer Preparation Unit Model



Poly Preparation And Dosing System

Three Tanks Automatic Polymer Preparation


PAM Polymer Preparation Feature


Highly automatic control , KPL control system , easy handle;
High stability, it will give alarm and stop working when it goes fault;
In condition of certain output and continuous working, the chemical ready time is about 1 hour,density about  0.1%-0.3%;
Material: 304 stainless steel;
Compact structure , less room occupied , simple installation;
Special design Multi blade mixer;
Equipped with pre-mixer to help chemical power dissolving, adjustable water flow;
Fixed liquid density, Inlet water matched along with chemical powder.

Intelligent Dosing Control Systems Polymer Preparation


PAM Polymer Preparation Application


Aid condensation of city sewage
Aid condensation of industry sewage
Disposal and deposit of sludge
