Lamella Clarifier Design Lamella Plate Clarifier Tube Settler Media

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella Separator Description

Lamella clarifier also called inclined plate sediment tank. It is good at high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 60~70%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw waste water test report, it need dose flocculant usually.

Available options

Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

Lamella Gravity Settler

Lamella Separator Model

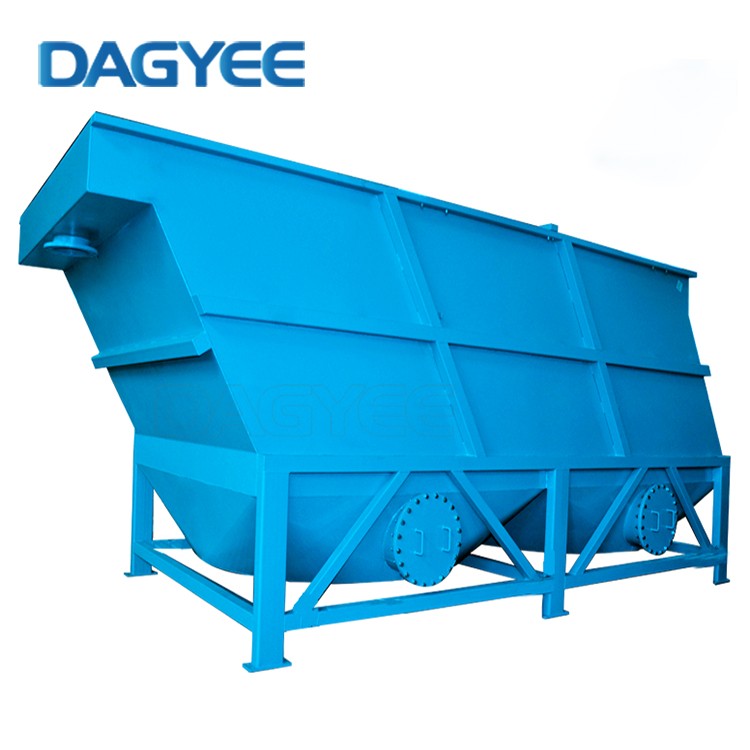

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

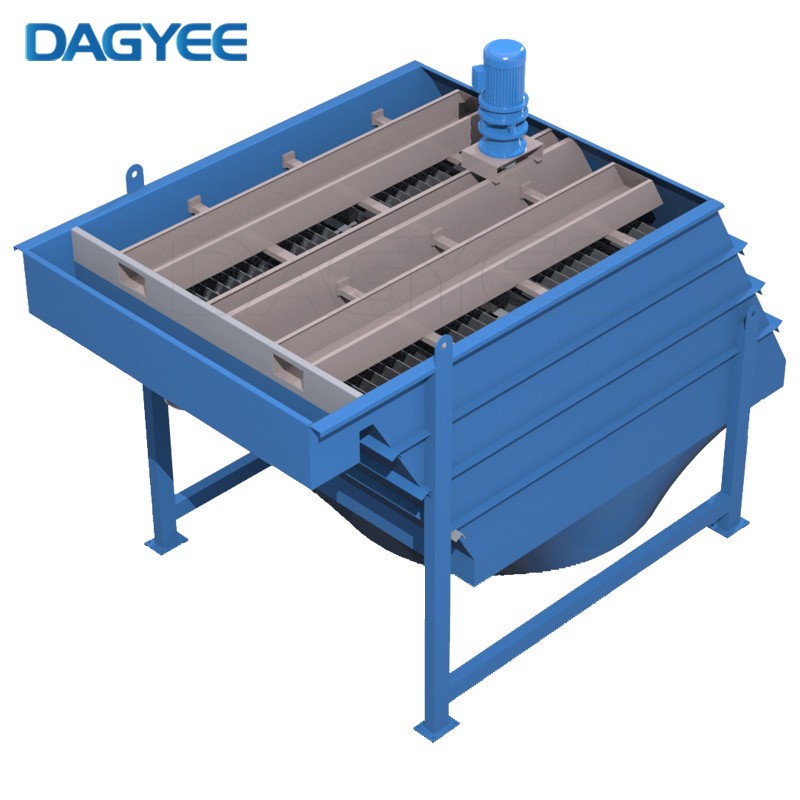

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Advantages

Simple structure,without wearing parts
Steady operation,easy operation
Small power,save energy
Small occupy area, low investment, high efficient
Short retention time, high sediment efficiency, no sludge backflow

Inclined Plate Separators

Lamella Separator Applications

Extremely smooth surface (mud does not stick)
High resistance to shocks (stages of loading, unloading, assembly)
Excellent hardness values, stiffness, elasticity and tensile strenght
Resistance to breakage from mechanical stress
Abrasion resistance
Excellent electrical and thermal insulating properties
Unassailable to chemical agents
No water absorption

Lamella plate clarifier
