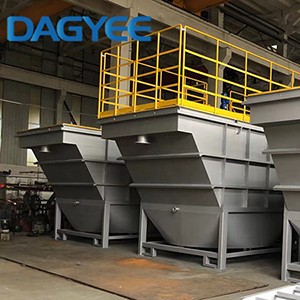

Horizontal Plate Lamella Separator Clarifiers Inclined Plate Separator

Horizontal Plate Lamella Separator Clarifiers Inclined Plate Separator

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella Separator Description

Inclined Plate Lamella Clarifiers are designed to remove solids from water. They are used in a wide variety of Wastewater Treatment Applications, including Metal Finishing Wastewater Treatment. The Total Suspended Solids TSS in the wastewater will naturally settle over time due to gravity, but this process can be sped up and improved by having Inclined Plates. The inclined plates provide a large projected settling area in a compact form. This technology is greatly beneficial compared to a cone bottom tank or a circular clarifier because of the space savings, settling efficiencies, and the reduced cost of construction.

Available options

Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

Lamella Gravity Settler

Lamella Separator Model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Advantages

Simple structure,without wearing parts
Steady operation,easy operation
Small power,save energy
Small occupy area, low investment, high efficient
Short retention time, high sediment efficiency, no sludge backflow

Inclined Plate Separators

Lamella Separator Applications

Gravel and sand industry
Recycling industry
Glass / Ceramics / natural stone
Chemical industry
Energy industry / cooling water
Tunneling / construction sites
Waste / Landfill / street-cleaning
Heavy metal precipitation
Municipal water treatment Systems
Wet scrubber and slaking effluents in the power industry
Thickening processes in the chemical, mining and mineral industries

Lamella plate clarifier
