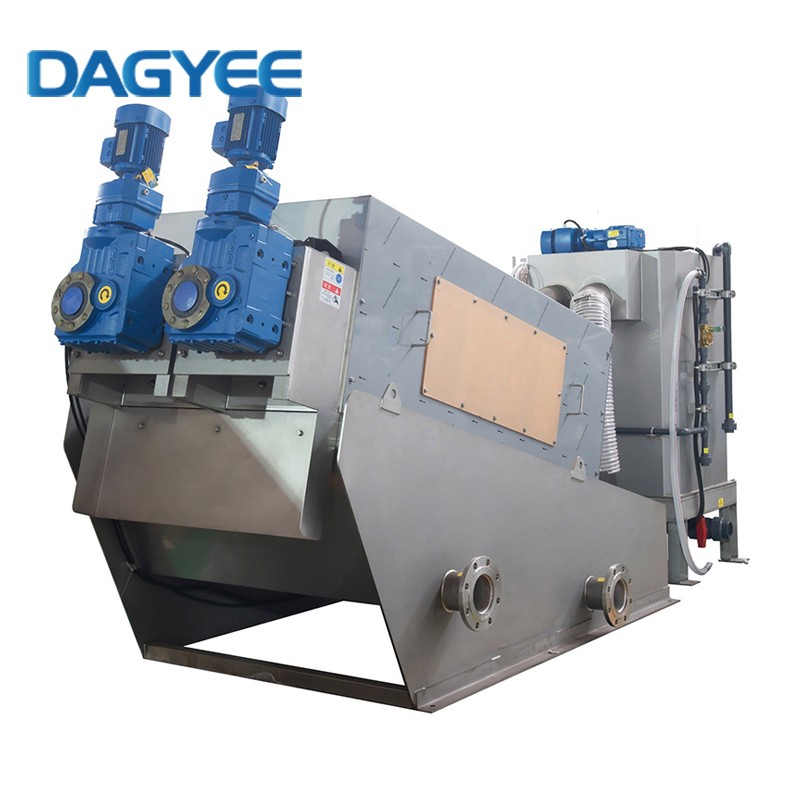

Multi Disc Screw Press Dehydrator Liquid Solid Separator Sludge Dewatering

  • Product Item : DL-301
  • Category: Sludge Dehydrator
  • Material: SS304/SS316L
  • Productivity: 30-50KG/H
  • Machinery Test Report: Provided
  • Certification: CE /ISO9001
  • INQUIRY   EMAIL

Sludge Dehydrator Description


Sludge dewatering screw filter press for industrial wastewater treatment plant developed by DAGYEE utilizes the dewatering principles of force-water homo-direction, thin-layer dewatering, proper pressure and extension of the sludge dewatering path. The new equipment, more advanced than the traditional dewatering equipment which are easily blocked, unsuitable for low-concentrated sludge and oily sludge, of high consumption and difficult to operate, well eliminate these problems and are of higher efficiency and power saving.

Sludge Dehydrator Process


Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;

Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.



Sludge Dehydrator Model




Model DL301
DS capacity  kg/h 30--50 kg/h
Sludge capacity m3/h(2-50g/L) 1-15
Spiral diameter mm 310*1
Discharge Distance mm 495
Size  L*W*H  mm 3255*985*1600
Net.Kg 850
Run Kg 1320
Power Kw 0.74
Washing Q L/h 40

Sludge Dehydrator Widely Use



Applicable sludge concentration of 2000mg/L-50000mg/L.
Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.


Sludge Dehydrator Features



Automatic operation
High quality and Reliability
Continuous functioning
Quick and easy installation
Low energy consumption
Innovative washing System
Dewatering and discharge in one equipment
Manufactured in Stainless Steel AISI 304 and  316(L)
Welding pickled and passivated
Easy removable covers for hygienic inspection
Odour and Insects containing covers
Low and easy maintenance


Sludge Dehydrator Application



All range of industries ETP & STP
Faecal Sludge management
Primary sludge and biological sludge dewatering
Wastewater treatment plants – New / Existing
