  • Sieve Bend Run Down Screen Static Fine Particle Self Cleaning Products
  • Sieve Bend Run Down Screen Static Fine Particle Self Cleaning Products
  • Sieve Bend Run Down Screen Static Fine Particle Self Cleaning Products
Sieve Bend Run Down Screen Static Fine Particle Self Cleaning ProductsSieve Bend Run Down Screen Static Fine Particle Self Cleaning ProductsSieve Bend Run Down Screen Static Fine Particle Self Cleaning Products

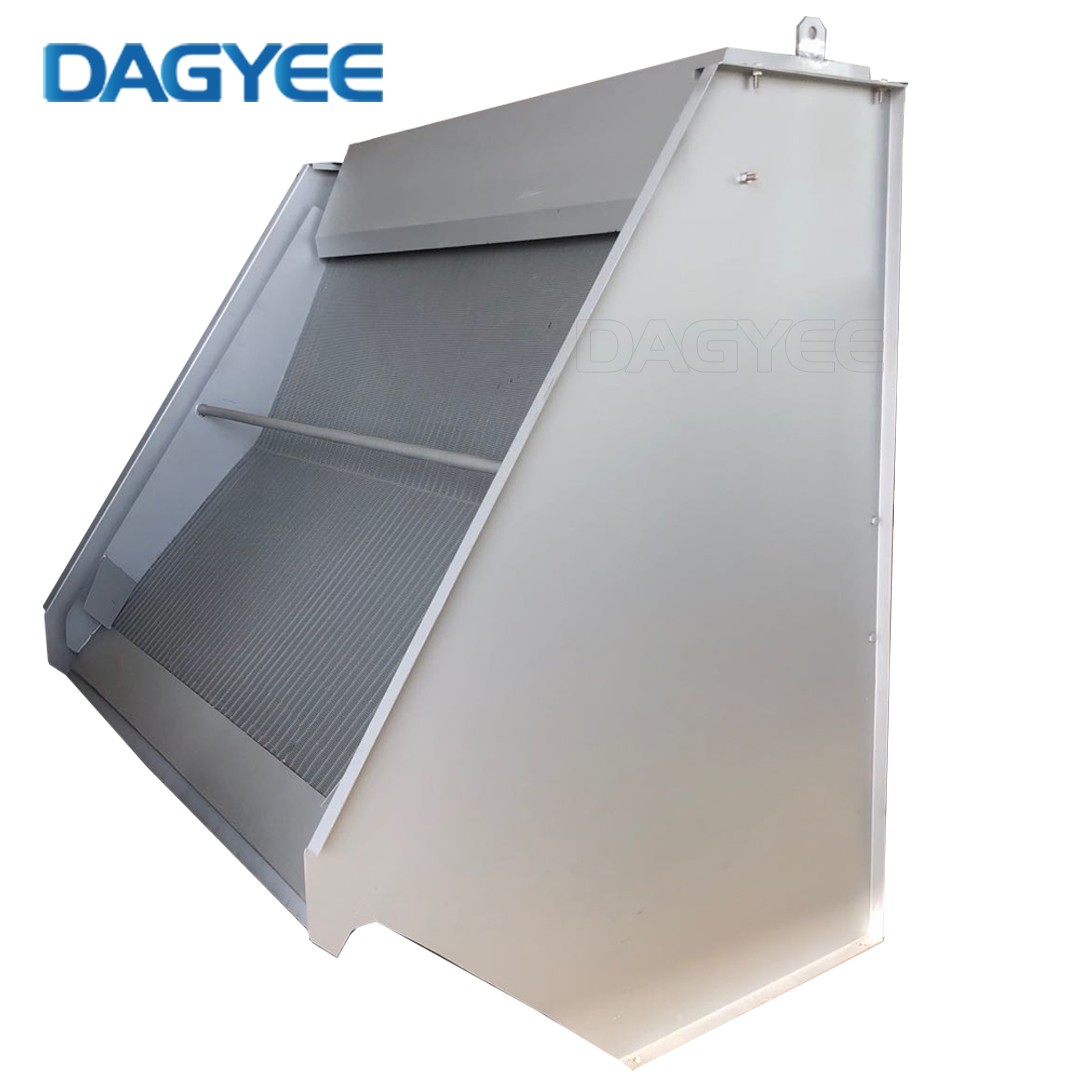

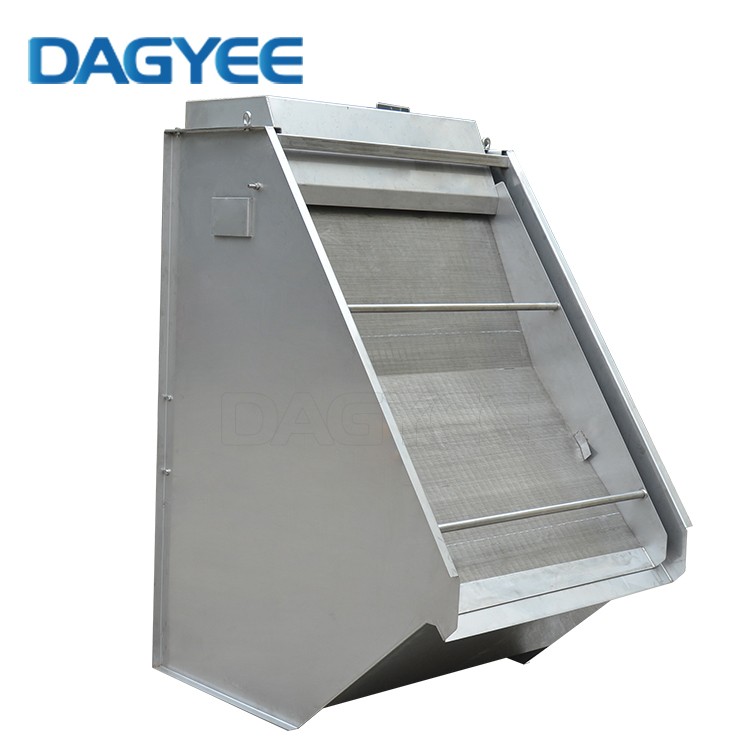

Sieve Bend Run Down Screen Static Fine Particle Self Cleaning Products

  • Product Item : DHS
  • Category: static screen
  • Grid gap: 0.5mm-2.5mm
  • Material: SS304/316
  • Application: Solid-liquid Separation
  • Operation: Automatic Running
  • INQUIRY   EMAIL

Static Screen Wastewater Description


Influent  pumped into the inflow chamber through the inlet of the pipe. As the water level rises, it will flow under the  wage weir and the pivoting baffle.

Liquids and solids flow through the screen, and Liquids falls through the screen, while gravity and more screening push the captured solids toward the discharge point.

The wastewater passes through the filter enters distribution chamber and flows through the outlet tube.

The drip-proof assembly at the bottom of the filter directs excess water to the waste chamber. When the solids reach the bottom of the screen, they slide into the container, conveyor or other suitable receiving equipment.

Dagyee offers a variety of rear screen and dewatering equipment. To assemble the most cost-effective screening system. Welcome to consult.


Static Screen Domestic Wastewater Pretreatment


Static Screen Wastewater Works


Used for Dissolved air flotation as a core product, static screen as a pretreatment before  Dissolved air flotation . These screens facilitate a consistent flow and reduce the amount
of suspended solids going to the DAF unit.

The static sieve equipment we produce is manufactured from stainless sieve bars called wedge wire slots. The chassis of the equipment is manufactured from AISI 304 stainless steel or epoxy paint protected carbon steel.
Sieve opening is projected between 500 microns and 2 mm.Inlet and outlet are manufactured with flanges, thus facilitating installation.


Static Screen Wastewater Model




Static Screen Wastewater Feature


No moving parts, no motor
Very low installation cost, no maintenance required
Only need regular cleaning
Quiet operation
V shape of the bar provides a self-cleaning effect on the screen


Static Screen Wastewater Application


Industrial wastewater treatment plants
Textile
Paper
Slaughterhouse
Food and Plastic recycling wastewater treatment plants
