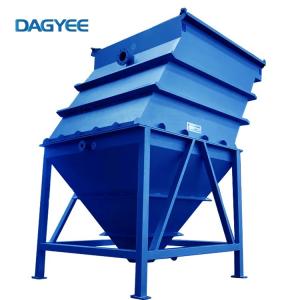

Waste Water Clarifier Solid-Liquid Separator Inclined Plate Lamella Conical Clarifier Settling Tank

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella Separator Description

Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

Available options

Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

Lamella Gravity Settler

Lamella Separator Model

DLC-I Gravity Lamella, V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Advantages

Unit is Completely Assembled
Low Installation
Conservative Design 0.2 GPM/Ft2
Completely Automatic, Gravity in Gravity Out
Reduced Floor Space
Large Compartment Flocculation Tanks with Mixer for Extra Retention Time (approximately 50-60 minutes)

Inclined Plate Separators

Lamella Separator Applications

Water following physical-chemical treatment
Tailings in mining and metallurgical beneficiation
Solutions from gold leaching processes
Wet scrubbing effluents
Effluent treatment in pulp and paper mills
Filter backwash

Lamella plate clarifier
