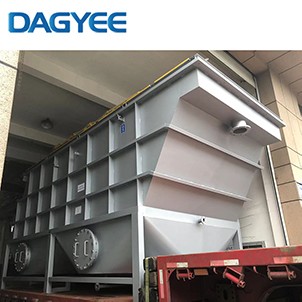

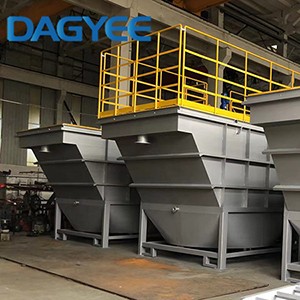

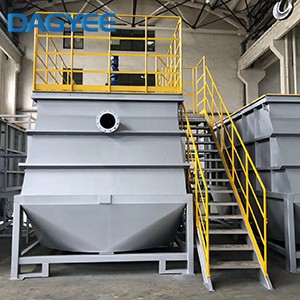

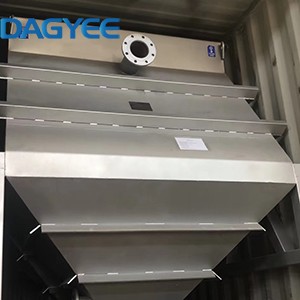

Horizontal Plate Automatic Lamella Clarifier Gravity Settling Settlement Tanks

Horizontal Plate Automatic Lamella Clarifier Gravity Settling Settlement Tanks

Product Item : DLC-010
Category： Lamella Separator
Certification:CE Certificate
Capacity:1-200 m3/h
Function:High TSS removal
Wastewater Treatment Plants
INQUIRY EMAIL

Lamella Separator Description

Lamella clarifier inclined plate settler (IPS) a type of settler designed to remove particulates from liquids.
They often employed in primary water treatment in place of conventional settling tanks. used in industrial water treatment. inclined plates provide a large effective settling area for a small footprint. The inlet stream is stilled upon entry into the clarifier. Solid particles begin to settle on the plates and begin to accumulate in collection hoppers at the bottom of the clarifier unit. Sludge drawn off at the bottom of the hoppers and the clarified liquid exits the unit at the top over weir.

Available options

Continuous operation.
Due to its small volume no need to allocate large storage when emptying.
No drive nor mechanical parts.
Filling and emptying time is short.
Small floor area footprint.
Modular design for future expansions.

Lamella Gravity Settler

Lamella Separator Model

DLC-I Gravity Lamella ,V shape mud bucket, simple structure, no energy consumption.

DLC-II Lamella with scraper,Increase the mechanical transmission mechanism, the mud discharge is better and smoother, and it matches the unit with large processing capacity.

DLC-III Super hydraulic Lamella,Reduced footprint, efficient sedimentation, detachable transportation.

lamella separator

DLC Model	Capacities (m³/h)	Piping Connections()				Physical Dimensions(m)
DLC Model	Capacities (m³/h)	Inlet(a)	Effluent(b)	Sludge(c)	Backwash(d)	L	W	H
DLC-	5	80	80	50	50	2.55	1.6	2.9
DLC-	10	100	100	50	50	3.35	1.82	3
DLC-	15	100	100	50	50	3.35	2.02	3
DLC-	20	100	100	50	50	3.35	2.02	3
DLC-	30	150	150	50	50	4.2	2.22	3
DLC-	40	150	150	50	50	4	2.8	3
DLC-	50	200	200	50	50	4.65	2.82	3
DLC-	60	200	200	50	50	4.7	3	3
DLC-	70	250	200	50	50	6.4	2.6	3
DLC-	80	250	200	50	50	6.8	2.82	3
DLC-	100	250	250	50	50	7.05	3.02	3

Lamella Separator Advantages

Structural steel support legs
Epoxy painted carbon steel tank
Individually removable FRP plates
Adjustable effluent weir plates
Standard units can be manufactured for flows from 5 gpm to 3000 gpm and above in a single above-grade tank
One-piece prefabricated units are available with up to 1000 sqft of effective settling area
Single tank construction with integral flash mix/flocculation compartments for smaller units
Multiple sample connections

Inclined Plate Separators

Lamella Separator Applications

• Primary clarification of wastewater streams
• Backwash water recovery
• Industrial water treatment systems
• Potable water treatment systems
• River water abstraction clarification
• Wash water recovery and recirculation systems
• Wet scrubber and slaking effluent treatment

Lamella plate clarifier
