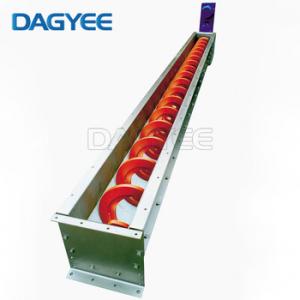

SS304 Conveying Technology Food Grade Shaftless Screw Conveyor

SS304 Conveying Technology Food Grade Shaftless Screw Conveyor

Product Item : DLW
Category： Shaftless Screw Conveyor
Certification:CE Certificate
Length: 60-70 meters
Material：Q345B 16Mn ss304 ss316
Conveying angle:no more than 30°
INQUIRY EMAIL

Shaftless Screw Conveyor Description

Shaftless screw conveyor according to the building material, chemical industry, environmental protection,
electric power, medicine, metallurgy, food and other industries in the LS type, GX type screw conveyor conveying grinding cut big, viscosity is bigger, is easy to agglomerate, wrapping easily material formed when material blockage, suspension bearing damage to the actual situation of screw machine doesn't work and independent research and development of a new type of screw conveyor. This product is suitable for continuous and uniform conveying of loose, sticky and easily wound materials, the temperature of conveying materials is up to 100℃, the maximum inclination Angle is less than 30°.

Shaftless Screw Conveyor Model

Single shaftless screw conveyor screw shaft, without mixing and stirring functions.

Twin Shaftless Screw Conveyor It adopts double screw blades with mixing and stirring functions. The two screw blades rotate in opposite directions to avoid material blocking. The conveying capacity is 1.5-2 times that of a single shaft.
Inclined Shaftless Screw Conveyor mainly used for conveying materials at a small angle of 25°.

DLS Model	Capacities (m3/h)			Length	Speed	Size
DLS Model	0⁰	15⁰	30⁰	(m)	(r/min)	A(mm)	B(mm)	B0(mm)
DLS200	2	1.4	0.9	10	20	200	310	270
DLS260	3.5	2.5	1.5	10	20	260	370	340
DLS320	9	6.5	4.1	15	20	320	430	400
DLS355	11.5	7.8	5.5	20	20	355	465	435
DLS420	15	11	7.5	20	20	420	530	500
DLS500	30	25	21	20	20	500	560	680

Shaftless Screw Conveyor Benefits

Bolt slot cover
Standard water inlet
Inspection and overflow
Drain Kit
slot feet
cleaning nozzle
Different types of power transmission: direct drive, coupling drive, chain drive, belt drive
Different linings available: with wear signal, bottom strip or base plate, white or black plastic
Spiral guide rod

Shaftless Screw Conveyors VS Shafted Screw Conveyors

Conveying materials

Shaftless is suitable for conveying sludge, household garbage, grid slag and other viscous, entangled materials and massive materials. It is precisely because the design of the shaftless screw conveyor without a central axis has great advantages for these materials.
The shaft screw conveyor is suitable for conveying materials: powder, small particle materials, etc. If you convey viscous
materials such as sludge, it will stick to the inner tube shaft and blades, and the conveying block materials are easy to jam.

Conveying form
Shaftless screw conveyor is suitable for: horizontal conveying, and the large inclination angle should not exceed 20°, according to the actual usage.
The shaft screw conveyor is suitable for: horizontal conveying, inclined conveying, and vertical conveying.

Conveying capacity
Due to the use of shaftless, the single-machine conveying length of the shaftless screw conveyor can reach 60 meters, and the conveying capacity is 1.5 times that of the traditional shafted screw conveyor with the same diameter

Shaftless Screw Conveyors Application

Shaftless Screw (Spiral) Conveyors are specially designed for handling difficult, heterogeneous materials such as urban solid waste, screenings and floating matter, de-watered, thickened, conditioned sludge, packaged food, creams or pastes, as well as waste from: meat, fish, fruit and vegetable processing.

The main sectors of application are: wastewater treatment, sugarhouse rejects, fish industry, solid waste treatment, fruit and vegetable processing, beverage industry, pulp and paper, chemicals, food industry in general, meat processing plants, abattoirs/ slaughterhouses, restaurants, canteens, catering in general.
