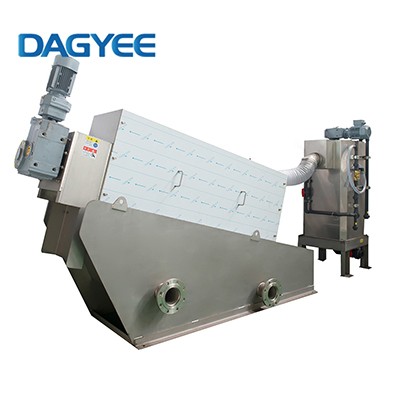

Multi-plate Screw Press Sludge Dehydrator Solid Liquid Separator Sludge Dewatering Press Machine

Sludge Dehydrator Description

Sludge dewatering equipment is not intended to treat the sludge or liquid but; it only separates the liquid components & solid components so it will get easier & cost effective to handle the separate phases of the disposal. Once the final sludge has been dewatered, then liquid is treated in ETP/STP & solid sludge is disposed.

With its long industrial expertise, dewatering Industries is your resolution supplier and sludge screw press manufacturer for cost-efficient sludge dewatering, to manage a large vary kinds of
sludge. That being a foresaid, the multiplate sludge dehydrator, unit is appropriate to handle each biological and physical-chemical kinds of sludge.

Sludge Dehydrator Process

Thickening: When the shaft is driven by the screw, moving rings around the shaft move up and down relatively. Most water is pressed out from the thickening zone and fall down to the filtrate tank for gravity;

Dewatering: The thickened sludge moves forward continuously from the thickening zone towards the dewatering zone. With the pitch of the screw shaft thread getting narrower and narrower, the pressure in the filter chamber increases higher and higher. In addition to the pressure generated by the back-pressure plate, the sludge is greatly pressed and dryer sludge cakes produce;
Self-cleaning: The moving rings rotates continuously up and down under the pushing of the running screw shaft while the gaps between the fixed rings and moving rings are cleaned to prevent from clogging that happens frequently for traditional dewatering equipment.

Sludge Dehydrator Model

Sludge Dehydrator Widely Use

Most especially for the oily sludge.
Fully Automatic Control
Combining with the auto control system, the machine runs very safely and simply and can be programmed according to the requirement of the users. It can operate automatically for 24 hours, unmanned.

Sludge Dehydrator Features

Maximize Capacity: Solids Loading, Flow Rate
Maximize Cake Solids
Minimize Polymer Usage
Stable performance: consistent cake solids
Reduce Operating Labor
Lower Energy Costs
Reduce maintenance costs
Increase Screw Press availability
Improve material handling properties

Sludge Dehydrator Application

Simple arrangement;
Low Power Consumption;
Simple and short start-up and shut down procedures;
Continuous operation. Hence continuous output can be obtained;
Process can be automized;
Only electricity and water supply for cleaning is required, and that too in less amount;
For a multi-channel machine, one or more channels may be removed for maintenance purposes, while the machine with the remaining channels may still be operated;
No clogging. Cleaning is automized and is easy;
Long life of discs;
No external lubrication system is required;
Flocculator built in the Screw press.
