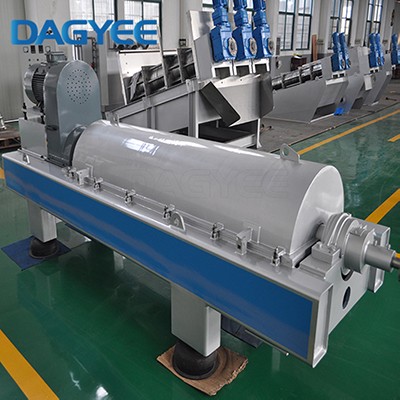

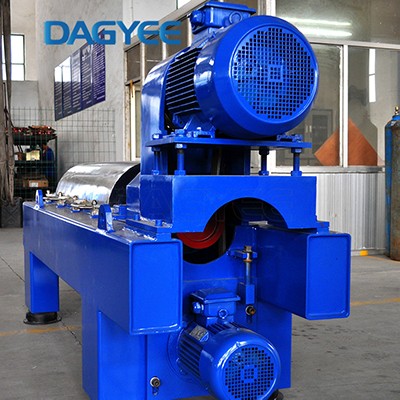

LW Series China Separator Clarifying Decanter Centrifuge

Product Item : DLW
Category： Decanter Centrifuge
Certification:CE Certificate
Core Components: PLC, Engine, Bearing, Motor, Gear
Keyword: calcium hypochlorite separation
Description: Solid-liquid Separation Machine
INQUIRY EMAIL

2 Phase Decanter Centrifuges Description

The LW decanter separator is suitable for plant oil,( such as palm oil, coconut oil, olive oil separation,) animal oil(such as fish oil, restaurant garbage ect) fish meal, coal tar dehydration and slag, adapted to the different viscosity and water content in coal tar separation (emulsion), after separating the tar reach national standard.

3 phase horizontal decanter centrifuges

2 Phase Decanter Centrifuges Model

Model	Drum diameter mm	Length mm	Maximum speed rpm	Hightest separation factor g	Mixture capacity m3/h	Motor Power Kw
LW250-900	250	900	5000	3500	0.5-3	11/5.5
LW350-1500	350	1500	3800	2850	1-5	18.5/5.5
LW400-1200	400	1200	3400	2581	1-8	22/7.5
LW400-1600	400	1600	3400	2581	2-10	22/7.5
LW400-1800	400	1800	3400	2581	2-12	22/7.5
LW450-1800	450	1800	3200	2572	5-20	30/7.5
LW450-2000	450	2000	3200	2572	5-25	30/7.5
LW530-2280	530	2280	2800	2350	10-50	45/15
LW600-2400	600	2400	2600	2265	15-65	55/18.5
LW650-2600	650	2600	2400	2100	20-80	55/90
LW720-2500	720	2500	2200	1950	25-90	75/90
LW800-2560	800	2560	2000	1800	30-100	90/132
LW800-3200	800	3200	2000	1800	30-110	90/132
LW900-3200	800	3200	1800	1650	30-150	132/200

2 Phase Decanter Centrifuges Technical

All contact parts can be made by SS304/SS316L/Duplex Steel 2205 Automatic adjustment of differential speed via VFD,Siemens PLC Spiral : Surfacing welding tungsten carbide grinding

Two motor drive
Approximately 80 to 90% of the oil is recovered
Low labor costs due to continuous and automatic operation
Highest g-force for higher solids output
Belts for both primary motor and secondary
NSK/SKF Bearing

2 Phase Decanter Centrifuges Features

Low noise, its vibration intensity is less than 4.5, and the running noise of the machine is less than 85dB (A)
High Speed up to 3600RPM & Variable Speed by frequency converter
The main body of the decanter centrifuge made from stainless stee: SS304/SS316/Titanium Alloy
The screw propeller made from stainless steel (SS304/SS316) protected by Tungsten carbide alloy or Ceramic
Solids discharge stainless steel protected by high-chromium iron
Solids Liquid separation system package available
Germany FAG/SKF brand bearings
Eletrical Components: SIEMENS/Schneider/ABB
All the seals of the machine are imported , adopting the Taiwan TTK brand

2 Phase Decanter Centrifuges Application

Paper sludge
Weather desulfurization sludge
Power plant sludge
Activated sludge
Ammonia sludge
Car wash sludge
Sludge drilling mud
Coal flotation waste
Cryolite flotation liquid

horizontal screw conveyor decanter centrifuge
